US Bolted Type Upright Frame Teardrop Pallet Rack

Teardrop pallet racks offer direct access to each pallet, simple inventory management and versatility. Upright frame is a fundamental component of pallet rack. Jracking frame columns are available in multiple sizes and thickness offering a wide variety of load-carrying capacities to match your need and application. Jracking teardrop beam-to-column connection is designed to be compatible with other widely available teardrop systems.

Features

● High strength steel

● Roll formed & Structural Profiles

● Welded & Mobile Construction

● Rigid connections

● Quick & Easy Assembly

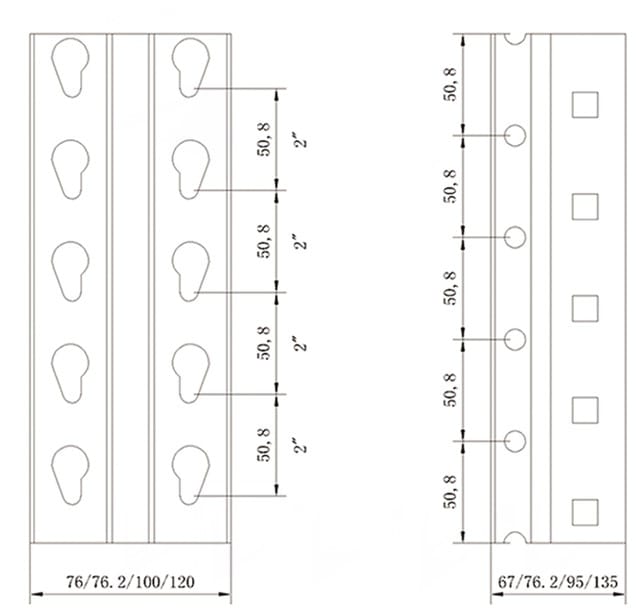

Frame

Teardrop pallet racks offer direct access to each pallet, simple inventory management and versatility. Upright frame is a fundamental component of pallet rack. Our frame columns are available in multiple sizes and thickness offering a wide variety of load-carrying capacities to match your need and application. Jracking teardrop beam-to-column connection is designed to be compatible with other widely available teardrop systems.

Unique 90-degree bend and no corner holes create added strength over competitor racks.

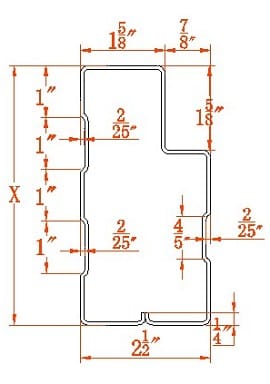

13 bending points in the section of upright strengthens the loading capacity structurally.

	3″*3″*14Ga (1.9mm) Welded	3″*3″*13Ga (2.3mm) Welded	3″*3″*14Ga (1.9mm) Bolted	3″*3″*13Ga (2.3mm) Bolted	M100*67*14Ga (1.9mm) Bolted	M100*67*13Ga (2.3mm) Bolted
1.0m	20603	24671	20460	24640	23465	30758
1.4m	19727	23621	19580	23540	22607	29500
1.8m	18586	22255	18480	22220	21626	28340
2.0m	17950	21492	17820	21340	21111	27498
2.2m	17356	20783	17336	20680	20548	26723
2.4m	16610	19890	16500	19800	19934	25885
2.6m	15798	18918	15796	18898	19272	24820

Beam

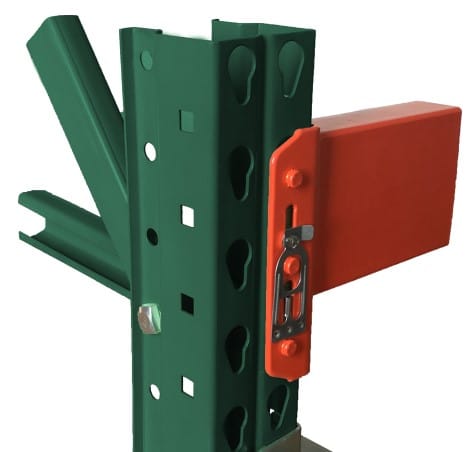

Jracking step beams are available in many profiles, in virtually any length. Max capacity is up to 14,000 lbs. per pair calculated based on the requirement of the current RMI specification. Teardrop pallet rack provides a robust, patented, automatic lock for improved safety. Our safety lock has been pre-installed at the factory which provides positive beam-to-column engagement and improves installation work efficiency.

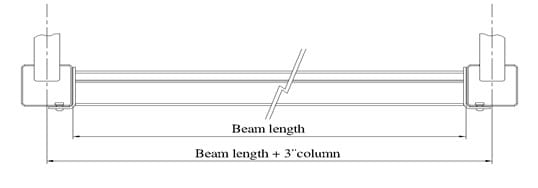

Beam length

Wire mesh decking

The wire mesh decking solutions are designed to provide additional safety for pallet rack application throughout your warehouse. We maintain the largest inventory of wire mesh decking in the world, and we manufacture custom sizes and styles for all storage and pallet rack requirements.

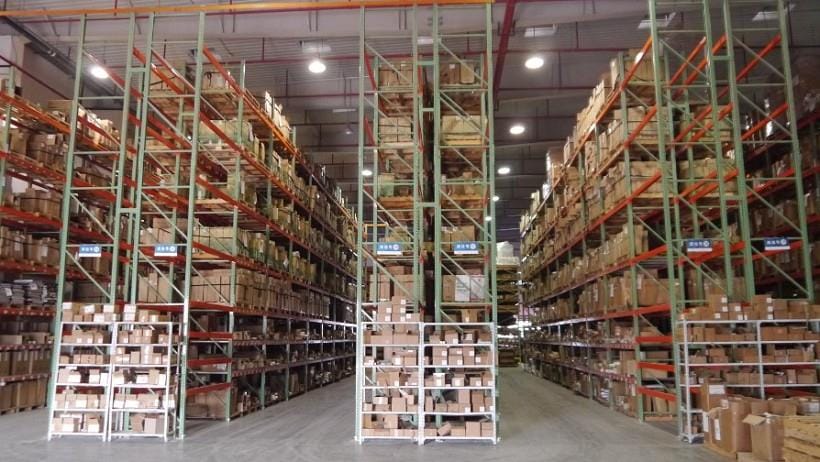

Real Cases

We’re one of the leading Cantilever Rack suppliers in China, equipped with a professional and productive factory at your service. If you are interested in our US Bolted Type Upright Frame Teardrop Pallet Rack, welcome to place orders. They are all in line with the standard of CE, ISO9001, Q235, RMI, AS4084 and Q345. And the customized orders are also welcome.
