Advantage
- Arm has been upgraded based on customers’ usage habits.
- Our raw material is Q355steel, which can guarantee high product quality.
- Height can be customized, the highest column is able to reach 10.5m.
- Heavy loading, loading of single-arm can up to 1500kg.
- HDG H&D bracing can meet indoor and outdoor usage requirements.
- Except from the regular size, the longest arm can last to 3m.
- Keep selling to Australia more than 15 years.
Bracing Position
Technical Parameters
| Cantilever Column | |||
| Specification | Height(mm) | Arm Length(mm) | Finished |
| 305 | 4267.2 | 1200 | HDG/Powder Coated(RAL 5017 Blue Standard) |
| 1500 | |||
| 305 | 4876.8 | 1200 | |
| 1500 | |||
| 305 | 5791.2 | 1200 | |
| 1500 | |||
| 350 | 4876.8 | 1200 | HDG/Powder Coated(RAL 5017 Blue Standard) |
| 1500 | |||
| 350 | 5791.2 | 1200 | |
| 1500 | |||
| 350 | 6400.8 | 1200 | |
| 1500 | |||
| 410 | 5791.2 | 1200 | HDG/Powder Coated(RAL 5017 Blue Standard) |
| 1500 | |||
| 410 | 7010.4 | 1200 | |
| 1500 | |||
| 410 | 8534.4 | 1200 | |
| 1500 | |||

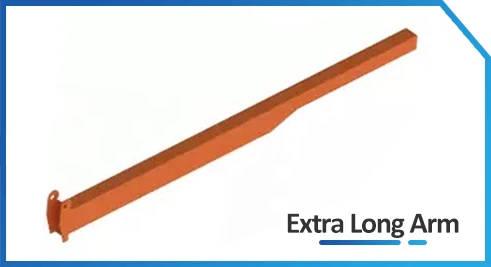

arm
The range of loading capacity/per arm is 500kg-1500kg. Specific dimension also can be customized as request.
| Cantilever Arm | ||
| Specification | Arm Length(mm) | Finished |
| H120 | 1200 | HDG / Powder Coated (RAL3000 RED Standard) |
| H120 | 1500 | |
| H150 | 1200 | HDG / Powder Coated (RAL3000 RED Standard) |
| H150 | 1500 | |
| H180 | 1200 | HDG / Powder Coated (RAL3000 RED Standard) |
| H180 | 1500 | |

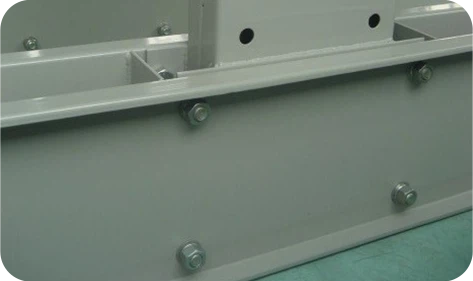

Base
Base length must be the same or greater than the arm length.
The bases are used primarily as an anti-tip device in addition to being a load bearing structure.
| Cantilever Base | ||
| Specification | Length(mm) | Finished |
| H305 | 1200 | HDG/Powder Coated(RAL 5017 Blue Standard) |
| H410 | 1200 | |
| H305 | 1500 | HDG/Powder Coated(RAL 5017 Blue Standard) |
| H410 | 1500 | |
Jracking is an expert in making cantilever racking.
We can provide various column heights, arm lengths, base lengths (single or double sided) to ensure an ideal solution for your warehouse.
Strong Production Capacity
Our Service

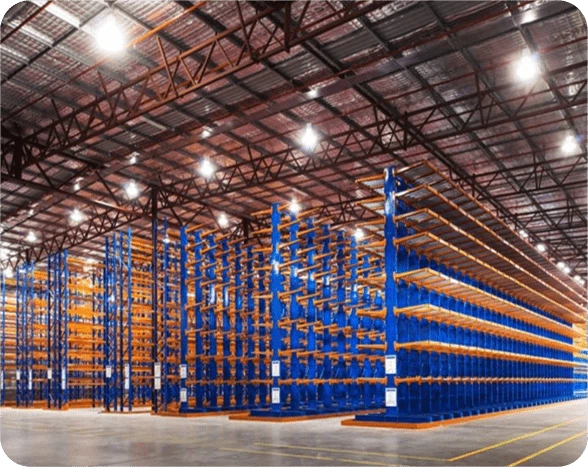

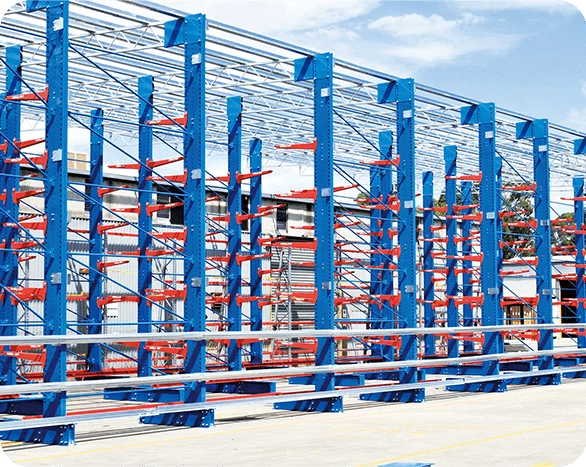

Classic Project
