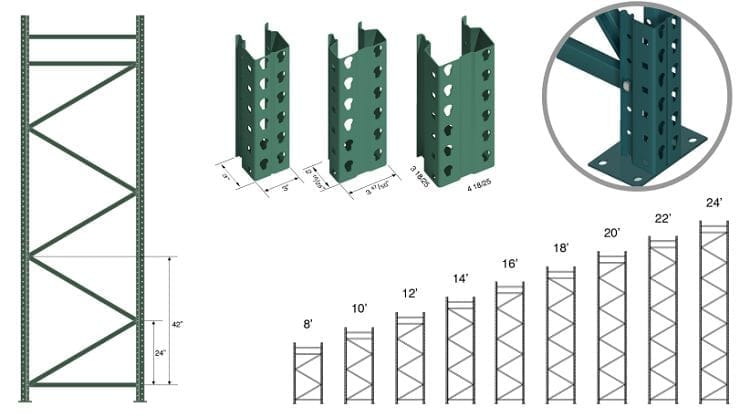

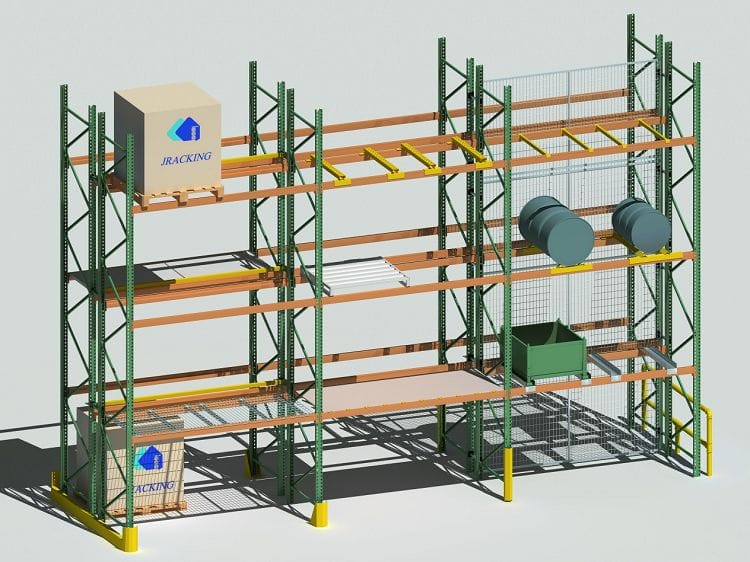

Teardrop pallet racks offer direct access to each pallet, simple inventory management and versatility. Upright frame is a fundamental component of pallet rack. Jracking frame columns are available in multiple sizes and thickness offering a wide variety of load-carrying capacities to match your need and application. Jracking teardrop beam-to-column connection is designed to be compatible with other widely available teardrop systems.

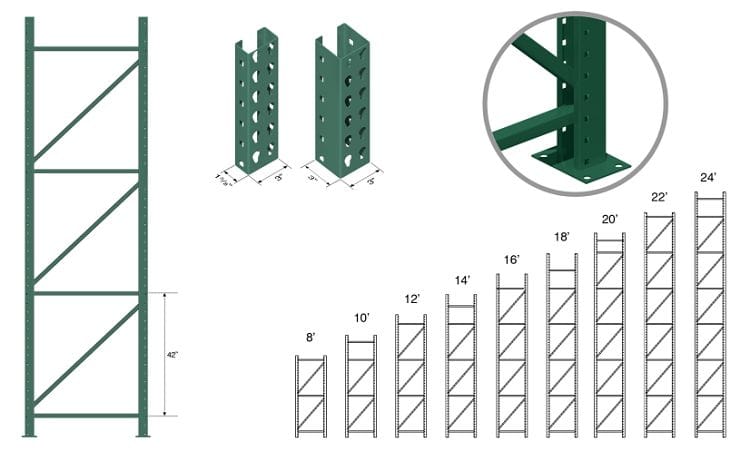

Bolted Type Upright Frame
Bolted frame is easy to assemble. Jracking bolted frame has variety of gauges, length and configurations. The footplate is optional. Due to the bolted character, this type of frame is more resistant to twisting, separating and axial loading.

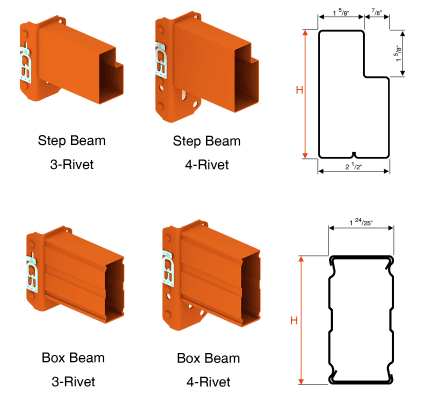

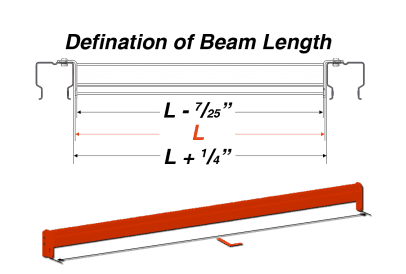

Beam

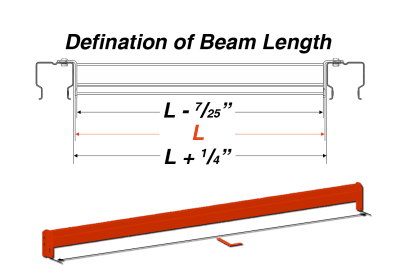

Jracking step beams are available in many profiles, in virtually any length. Max capacity is up to 14,000 lbs. per pair calculated based on the requirement of the current RMI specification. Teardrop pallet rack provides a robust, patented, automatic lock for improved safety. Our safety lock has been pre-installed at the factory which provides positive beam-to-column engagement and improves installation work efficiency.
Support Crossbar
In the double-depth rack, due to the limitation of high operation line of sight, the following depth cargos cannot be set perfectly. Pallet support bars prevent the security threat if pallet cannot be set up correctly.

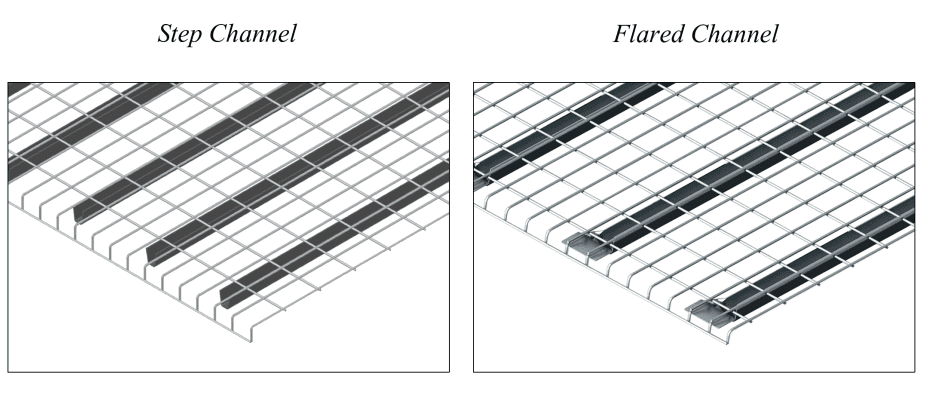

Wire Mesh Deck
The wire mesh decking solutions are designed to provide additional safety for pallet rack application throughout your warehouse. We maintain the largest inventory of wire mesh decking in the world, and we manufacture custom sizes and styles for all storage and pallet rack requirements.

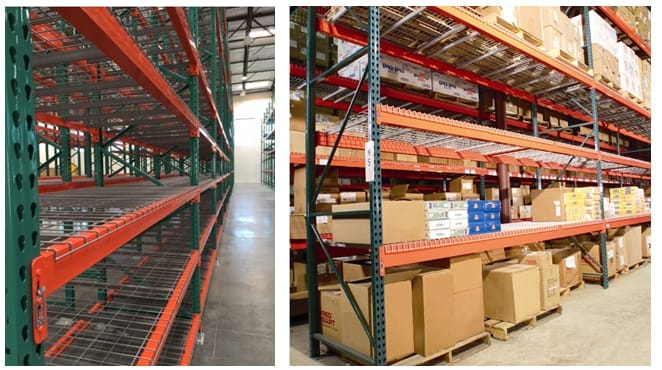

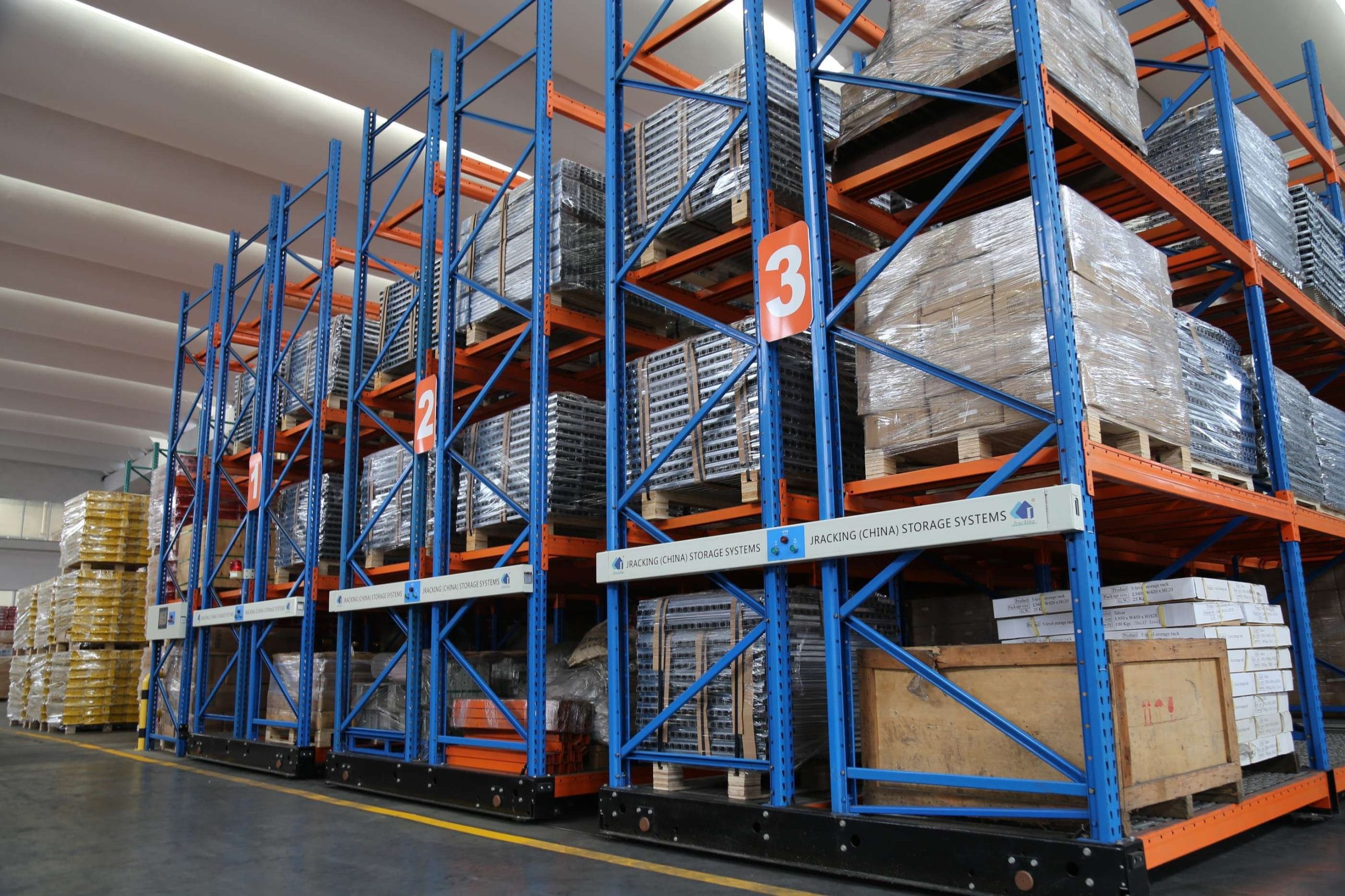

Real Cases
